| MOQ: | 10 |
| giá bán: | 1 |
| Attribute | Value |
|---|---|

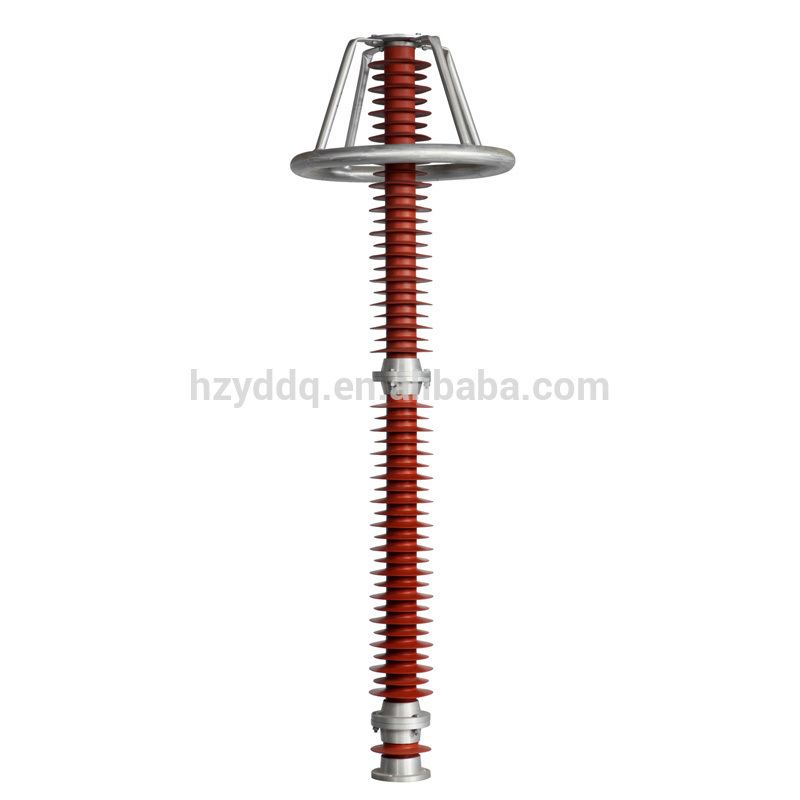

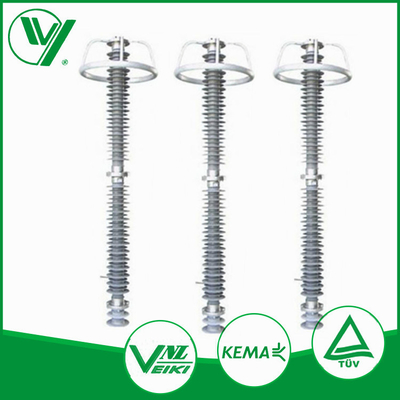

| Model NO. | Y5WZ5-51/134 |
| Installation | Parallel Arrester |
| Application | Substation |
| Size | Large |
| Operation Voltage | High Voltage |
| Shape | Spiral |
| Material | ZnO |
| Arc-Extinguishing Medium | Air |
| Housing | Porcelain |
| Accessories | Surge Counter |
| System Voltage | 35kV |
| Transport Package | by Wood Carton |
| Specification | SGS |
| Trademark | YongDe |
| Origin | China |
| HS Code | 85354000 |
| Production Capacity | 100PCS/Month |
| Type | Nominal System Voltage | Rated Voltage | Continuous Operating Voltage | MRV under 1/5 μs Steep Discharge Current | MRV under 8/20 μs Lightning Discharge Current | MRV under 30/60 μs Operating Discharge Current | Minimum Reference Voltage under 1 mA DC | 4/10 μs High Current Impulse Twice (KA) | 2mS SW through-flow capacity A/18 | Line Discharge Class | Weight kg | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Y5WZ5-51/134 | 35 | 51 | 40.8 | 154 | 134 | 114 | 73 | 65 | 150 400 | 1 | 55 |
