| MOQ: | 1 |
| giá bán: | 0.1 |
| Attribute | Value |
|---|---|

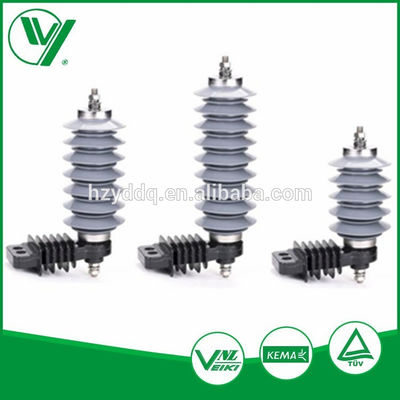

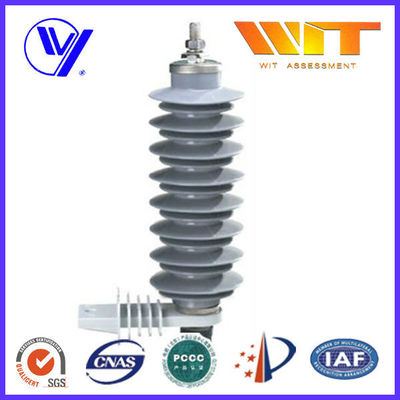

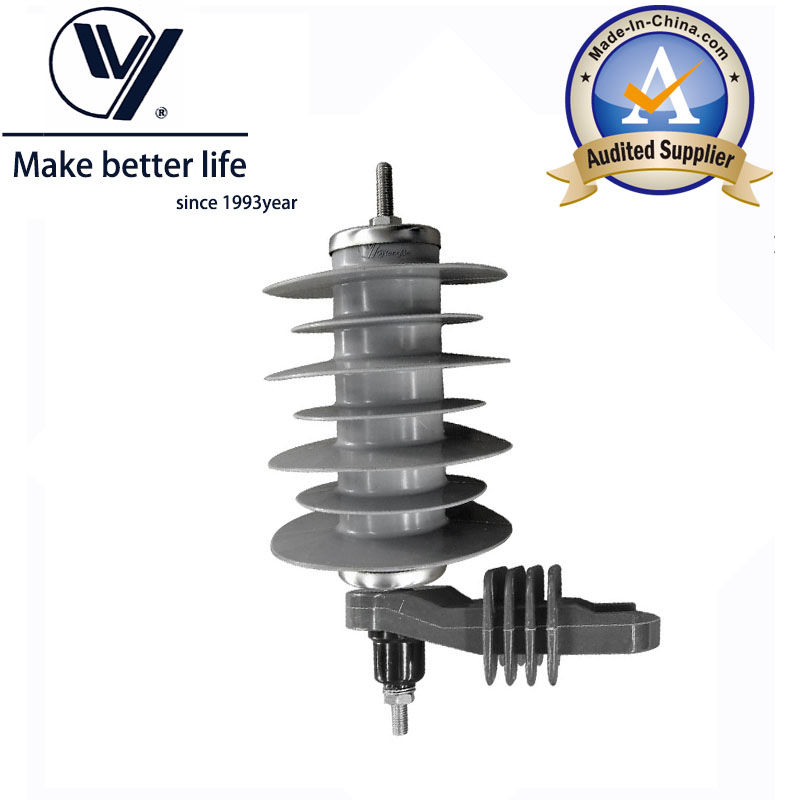

| Model NO. | YH10W5-21 |
| Installation | Tandem Arrester |
| Application | Substation |
| Size | Medium |
| Operation Voltage | High Voltage |
| Shape | Spiral |
| Material | ZnO |
| Brand | Yongde |
| Transport Package | Wooden Case |
| Specification | IEC60099-4 |
| Trademark | YONGDE |
| Origin | China |
| HS Code | 85354000 |
| Production Capacity | 5000 PCS/Month |
| Type | YH10W5-21/57.7 | 4/10µS High current impulse kA | 100 |
|---|---|---|---|
| Rated voltage (kV) | 21 | Lightning impulse withstand (kV) | 150 |
| MOCV (kV) | 17 | Power frequency voltage withstand (dry/wet) (kV) | 50 |
| Nominal Current (kA) | 10 | 0.1S TOV (kV) | 25.2 |
| Residual voltage of steep impulse at 5kA (kV) | 62.5 | 1S TOV (kV) | 24.15 |
| 8/20µS Residual voltage of lightning impulse current at 5kA (kV) | 57.7 | 10S TOV (kV) | 23.1 |
| Residual voltage of switching impulse current at 1kA (kV) | 43.7 | 1200S TOV (kV) | 21 |
| 1mA D.C reference voltage (kV) | 29.7 | Creepage distance (mm) | 662 |
| Line discharge level | 1 | Material employed in series non-linear resistor | Zinc Oxide |
| 2mS long duration impulse current (A) | 400 | Material of housing | Silicon Rubber |
