| MOQ: | 1 |
| giá bán: | 1 |
| Attribute | Value |
|---|---|
| Model NO. | HY5WBG-17/50 |
| Installation | Parallel Arrester |
| Application | Substation |
| Size | Medium |
| Operation Voltage | Low Voltage |
| Shape | Cuboid |
| Material | ZnO |
| Brand | Yongde |
| Housing Color | Grey |
| Housing | Polymer |
| Voltage | 17kv |
| Discharge Current | 5ka |
| Transport Package | Carton |
| Specification | GB IEC |
| Trademark | YongDe |
| Origin | China |
| HS Code | 85354000 |
| Production Capacity | 50,000 PCS/Year |

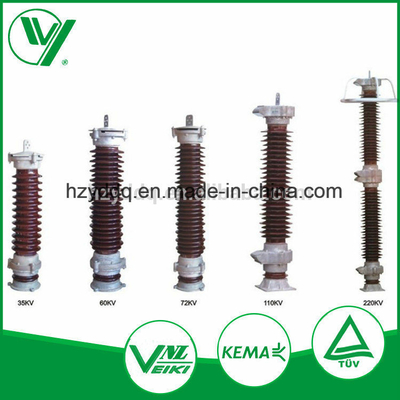

The arrester features non-linear high-quality metal oxide varistor internals with a silicone rubber molded exterior.
Under normal conditions, the surge arrester maintains high resistance with only microampere current flow, ensuring no impact on equipment operation. During overvoltage events, the arrester switches to low resistance, conducting kilo-ampere current while maintaining voltage within safe limits to protect connected equipment.
| Type | Rated Voltage (KV) | Operate Continuous Voltage (KV) | Maximum DC 1 mA Reference Voltage (KV) | Minimum Steep Impulse Residual Voltage (KV) | Maximum Lightning Impulse Residual Voltage (KV) | Maximum Operation Impulse Residual Voltage (KV) | Persistent Current (MA) | Resistive Current (UA) | Bending Resistance (KN) | Bending Broken (KN) |
|---|---|---|---|---|---|---|---|---|---|---|
| HY5WBG-17/50 | 17 | 13.6 | 25 | 57.5 | 50 | 42.5 | 0.5 | 250 | 1.6 | 4 |
